Tutorials

This section proposes the following tutorials

The configuration files created using these tutorials are also available in the module OpenPisco.Demos() of the OpenPisco Python library 1 .

Topology optimization of a cantilever beam using structured level sets

The goal of this tutorial is to run a topology optimization of a cantilever beam using structured level sets.

Test case

Consider the following specifications

  • domain of size \(12\) m \(x 4\) m \(x 3\) m

  • elastic material with Young modulus equal to \(1\) Pa and Poisson ratio equal to \(0.3\)

  • beam clamped on the plane \(x = 0\) m and submitted to a vertical load g = \((0, 0, -1000)\) N on the point \((12, 0, 1.5)\)

  • minimization of the elastic compliance under a volume constraint

Data setting : header

At first, we start by editing a Liu_Tovar_2014_Cantilever_T4_C1.xml file.

The data file starts with the following header

<data dim="3">

Data setting : implicit zones

Define implicit zones

<Zones>
    <Gyroid id="100" scale="0.031831" desc="Init" />
    <Symmetric id="101" z="100" center="12 0 1.5"/>
    <Intersection id="1" z="10 101"/>
    <Plane id="2" point="0.1 0. 0." normal="1. 0. 0." desc="Block"/>
    <Cylinder id="3" center1="12 0 1.47" center2="12 0 1.53" radius="0.03" desc="Force"/>
    <Union id="4" z="2 3"/>
    <Union id="5" z="1 4 "/>
</Zones>

Data setting : grids

Define the background mesh which is a uniform grid

<Grids>
    <Grid id="1" n="61 41 31" origin="0. 0. 0." length="12 4 3"/>
</Grids>
Grid sizes

Fig. 2 Grid dimensions

Grid elements

Fig. 3 Structured mesh

Data setting : levelsets

Define the level set together with a set of options. By default the level set is structured.

<LevelSets>
    <LevelSet id="1" support="1"/>
</LevelSets>

Data setting : physical problems

Define the physical problem, which is a linear elastic static FEA problem.

We define one dirichlet condition and one neumann condition.

By default we use linear elements.

The option eVoid=”0.001” means that the density of the Ersatz material equals 0.001.

<PhysicalProblems>
    <StructuredFEA id="1" grid="1" type="disp" eVoid="0.001" narrow=".2">
         <Dirichlet zone="2" dofs="0 1 2" val="0.0"/>
         <Neumann   zone="3" dofs="1" val="-1000"/>
    </StructuredFEA>
</PhysicalProblems>
Physical analysis boundary conditions

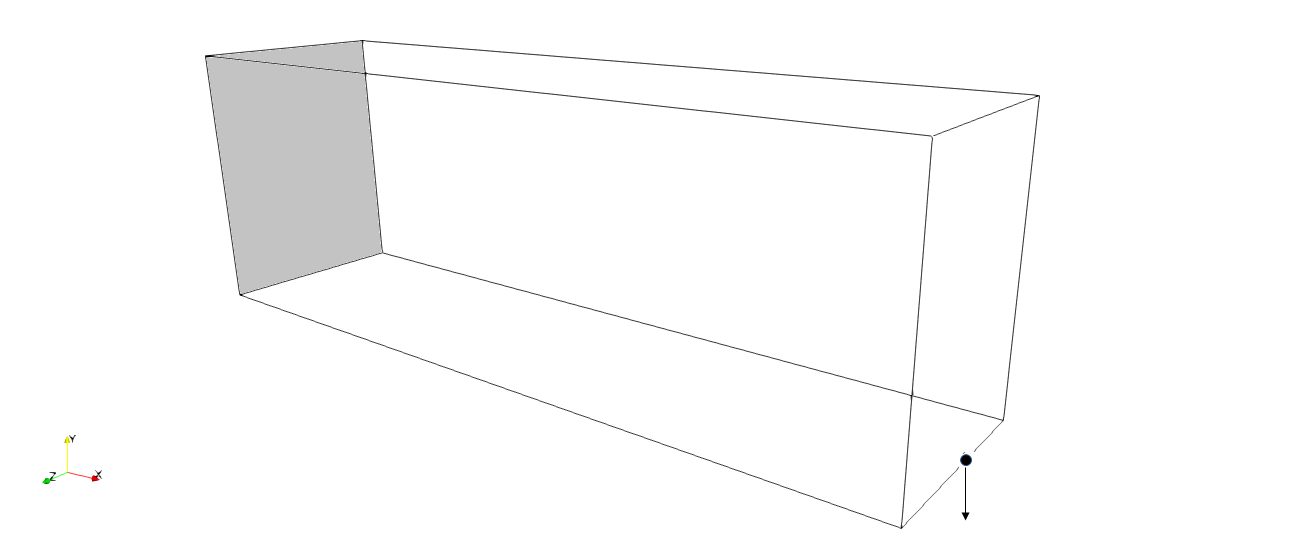

Fig. 4 Boundary conditions for the elastic problem. Clamped zone in light grey (left) and nodal force (right)

Physical analysis displacement

Fig. 5 Displacement field computed on the full design space

Data setting : outputs

Define the desired output

<Outputs>
   <Output id="2" name="Liu_Tovar_2014_Cantilever_T4_C1.xdmf"/>
   <Output id="3" name="Liu_Tovar_2014_Cantilever_T4_C1.csv" nTag="NT3" />
   <Output id="1" name="PROXY" outputs="2 3"/>
</Outputs>

Data setting : optimization problems

Then, we define the optimization problem by entering the objective, the constraints, the initial levelset, the implicit zones, the output and a set of options.

Note that we have to define an upper bound value for the constraint.

Note that, since the objective is a physical criterion, we precise which physical problem should be used with the keyword useProblem=”1”.

<OptimProblems>
    <OptimProblem type="TopoGeneric" id="1"
        OnZone="4" Dirichlet="2" Neumann="3"
        useLevelset="1"
        e2="0.001"
        output="1"
    >
      <Objective  type="Compliance"  name="Compliance" useProblem="1" />
      <Constraint type="Volume"     name="Volume"   upperBound="21.6"  desc="0.15*voltotal= 0.15*12*4*3=21.6"/>
   </OptimProblem>
</OptimProblems>

Data setting : optimization algorithms

Then, we define the optimization algorithm which is linked to the optimization problem

<TopologicalOptimizations>
    <OptimAlgoNullSpace id="1"
    useOptimProblem="1"/>
    numberOfDesignStepsMax="100"
</TopologicalOptimizations>

Actions setting

Here we declare actions which must be runned. At first, we create a nodal tag labeled “NT3” from the implicit zone “3” of the level set “1”

<Actions>
    <Action type="CreateTagsFromZones" ls="1" nodalTags="3" />

Then, the level set “1” is initialized with the implicit zone “5” and redistanciated to generate a signed distance function

<Action type="InitLevelset" ls="1" zone="5"/>
<Action type="UpdateDistance" ls="1" />

Then, we run the topology optimization

<Action type="RunTopoOp" TopoOp="1"/>

Eventually the optimal shape is exported in stl format

       <Action type="SaveShapeToFile" ls="1" filename="Liu_Tovar_2014_Cantilever_T4_C1.stl"/>
   </Actions>
</data>

Run

To run the script using the command line application execute in a terminal

OpenPiscoCL Liu_Tovar_2014_Cantilever_T4_C1.xml

To run the script using the GUI application execute in a terminal

OpenPisco Liu_Tovar_2014_Cantilever_T4_C1.xml

Output

After running the tutorial script the following output files have been created in the working directory

  • Liu_Tovar_2014_Cantilever_T4_C1.xml.log : run summary

  • Liu_Tovar_2014_Cantilever_T4_C1.stl : optimal shape in stl format

  • Liu_Tovar_2014_Cantilever_T4_C1.xdmf : (heavy) file containing the mesh and fields at each iteration in xdmf format

  • Liu_Tovar_2014_Cantilever_T4_C1.csv : convergence history in csv format

Optimal Shape

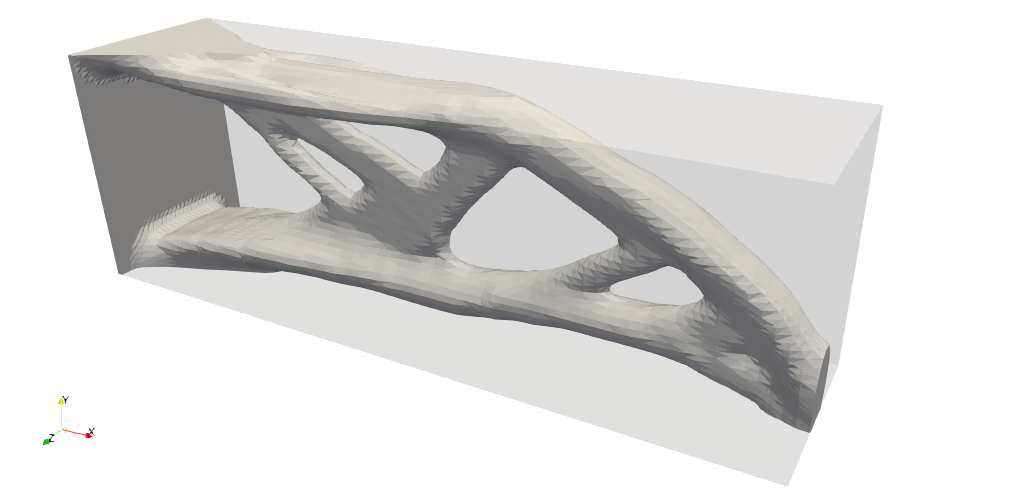

Fig. 6 Visualisation of the optimal design in Paraview

Optimal Shape Displacement

Fig. 7 Visualisation of the displacement field in Paraview

Topology optimization of a cantilever beam using unstructured conformal level sets

The goal of this tutorial is to run a topology optimization of a cantilever beam using unstructured conformal level sets.

Test case

Consider the following specifications

  • domain of size \(2\) m \(x 0.5\) m \(x 1\) m

  • elastic material with Young modulus equal to \(210.e9\) Pa and Poisson ratio equal to \(0.3\)

  • beam clamped on the plane \(x = 0\) m and submitted to a vertical load g = \((0, 0, -10000)\) N on the point \((2, 0.25, 0.5)\)

  • minimization of the volume under a compliance constraint

Data setting : header

At first, we start by editing a Cantilever.xml file.

The data file starts with the following header

<data dim="3">

Data setting : implicit zones

Define implicit zones

<Zones>
    <Plane id="1" point="0.0001 0.25 0.5" normal="1. 0. 0." desc="x0 plane"/>
    <Plane id="2" point="0.05 0.25 0.5" normal="1. 0. 0." desc="dirichlet"/>
    <Plane id="3" point="1. 0.24999 0.5" normal="0. -1. 0." desc="symetry plane"/>
    <Sphere id="4" center="2. 0.25 0.5"  radius="0.0009" desc="nodal force"/>
    <Cylinder id="5" center1="1.9999 0.25 0.5" center2="2.1 0.25 0.5" radius="0.01" desc="force"/>
    <Cylinder id="6" center1="-0.1 0.25 0.5" center2="2.1 0.25 0.5" radius="0.249"/>
    <Union id="7" z="2 4 6" desc="initialization"/>
    <Union id="8" z="2 5" desc="onzone"/>
</Zones>

Data setting : grids

Define the background mesh which is a uniform grid

<Grids>
    <Grid id="1" n="41 41 41" origin="0. 0. 0." length="2.0 0.25 1.0" ofTetras ="True"/>
</Grids>

Data setting : levelsets

Define the level set together with a set of options. The option conform=”True” means that the level set is conformal. When the body-fitted option is activated a set of meshing options are defined to drive the remeshing process.

<LevelSets>
    <LevelSet id="1" support="1" conform="True" gradientMethod="gradPhi">
        <MesherInfo hmax=".5" hmin="0.01" iso="0.0" rmc="True"
        nr="True" computeDistanceWith="meshdist"/>
    </LevelSet>
</LevelSets>

Data setting : physical problems

Define the physical problem, which is a linear elastic static problem.

We define material properties, two dirichlet conditions -clamped part and symetry plane- and one neumann condition.

By default we use linear elements.

<PhysicalProblems>
     <GeneralAster type="static_elastic" id="1" >
               <Material  E="210.e9" Nu="0.3" />
               <Dirichlet eTag="eTag1" dofs="0 1 2" value="0.0"/>
               <Dirichlet eTag="eTag3" dofs="1" value="0.0"/>
               <Force nTag="nTag4" value="0. 0. -10000" />
      </GeneralAster>
 </PhysicalProblems>

Data setting : outputs

Define the desired output

<Outputs>
   <Output id="2" name="Cantilever.xdmf"/>
   <Output id="3" name="Cantilever.csv" nTag="nTag4" />
   <Output id="1" name="PROXY" outputs="2 3"/>
</Outputs>

Data setting : optimization problems

Then, we define the optimization problem by entering the objective, the constraints, the initial levelset, the implicit zones, the output and a set of options.

Note that we have to define an upper bound value for the constraint.

Note that, since the objective is a physical criterion, we precise which physical problem should be used with the keyword useProblem=”1”.

<OptimProblems>
    <OptimProblem type="TopoGeneric" id="1"
        OnZone="8" Dirichlet="2" Neumann="5"
        useLevelset="1"
    printMeshQualityInfo = "True"
        output="3"
        outputEveryLevelsetUpdate = "False">
      <Objective  type="Volume"  name="Volume"/>
      <Constraint type="Compliance"  name="Compliance" UpperBound="2.5*4.69434000e-01"   useProblem="1" />
   </OptimProblem>
</OptimProblems>

Data setting : optimization algorithms

Then, we define the optimization algorithm which is linked to the optimization problem

<TopologicalOptimizations>
    <OptimAlgoNullSpace id="1"
       useOptimProblem="1"/>
</TopologicalOptimizations>

Actions setting

Here we declare actions which must be runned. At first the level set “1” is initialized with the implicit zone “7”

<Actions>
    <Action type="InitLevelset" ls="1" zone="7"/>

Then, we add the bounding box edges and the skin to the initial grid. Moreover, we create tags on elements of dimension 2 starting from the implicit zones “1”,”3”. Tags “eTag1”,”eTag3” are created.

<Action type="AddEdges" ls="1" ar="45" />
<Action type="AddSkin" ls="1"/>
<Action type="CreateTagsFromZones" ls="1" elementTags="1 3" dim="2" elemenprefix="eTag"/>

We create a nodal tag “nTag4” from implicit zone “4” for the nodal force and we set it as required to preserve it during the remeshing

<Action type="CreateTagsFromZones" ls="1" nodalTags="4" nodalprefix="nTag"/>
<Action type= "SetAsRequired" ls="1" nTags="nTag4" />

We perform a remeshing to generate a conformal mesh

  <Action type="Remesh" ls="1" hmax=".5" hmin="0.01" iso="0.0" rmc="True"
nr="True" computeDistanceWith="meshdist" />
Optimal Shape

Fig. 8 Background mesh after a first remeshing

Optimal Shape

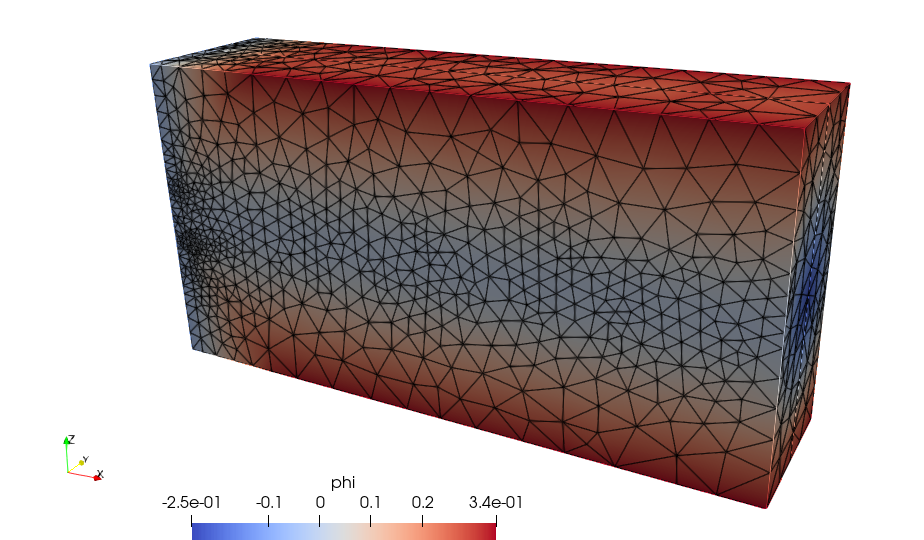

Fig. 9 Cut of the initial body-fitted mesh

Then, we run the topology optimization

<Action type="RunTopoOp" TopoOp="1"/>

Eventually the optimal shape is exported in stl format

       <Action type="SaveShapeToFile" ls="1" filename="Cantilever.stl"/>
   </Actions>
</data>

Run

To run the script using the command line application execute in a terminal

OpenPiscoCL Cantilever.xml

To run the script using the GUI application execute in a terminal

OpenPisco Cantilever.xml

Output

After running the tutorial script the following output files have been created in the working directory

  • Cantilever.xml.log : run summary

  • Cantilever.stl : optimal shape in stl format

  • Cantilever.xdmf : (heavy) file containing the mesh and fields at each iteration in xdmf format

  • Cantilever.csv : convergence history in csv format

Optimal Shape

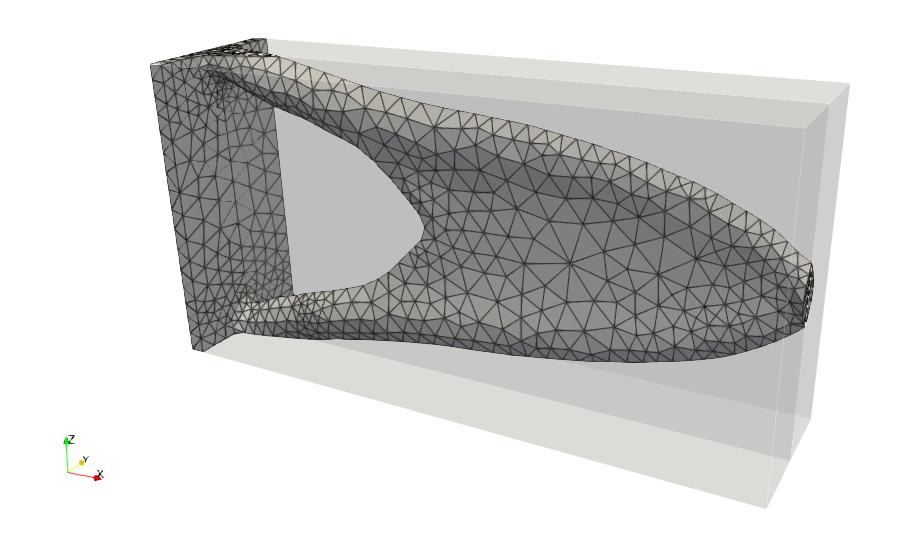

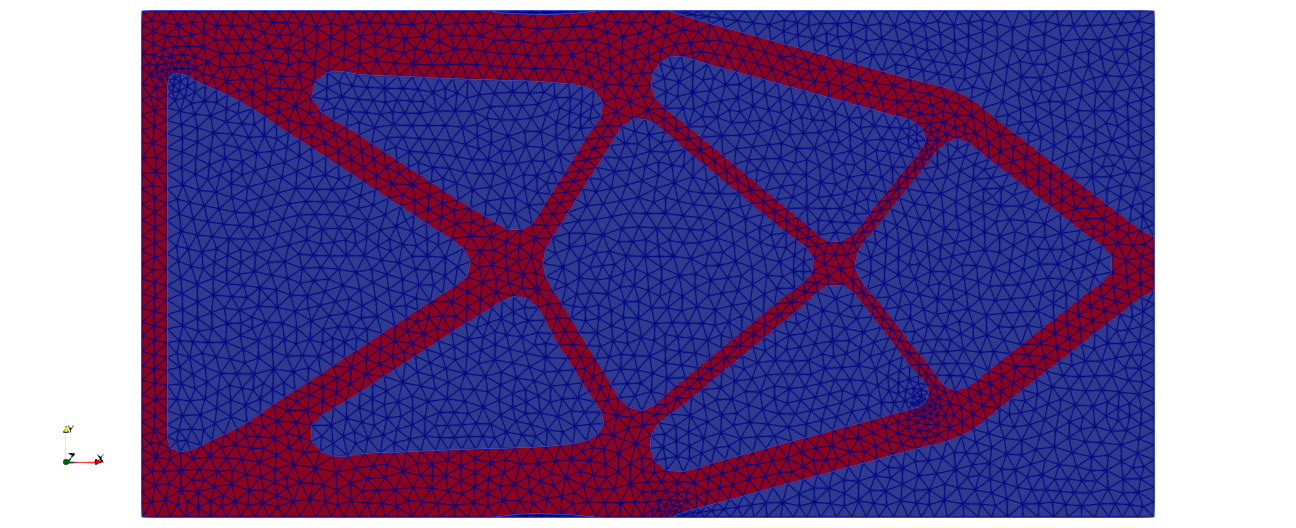

Fig. 10 Visualisation of the optimal design in Paraview

Optimal Shape Displacement

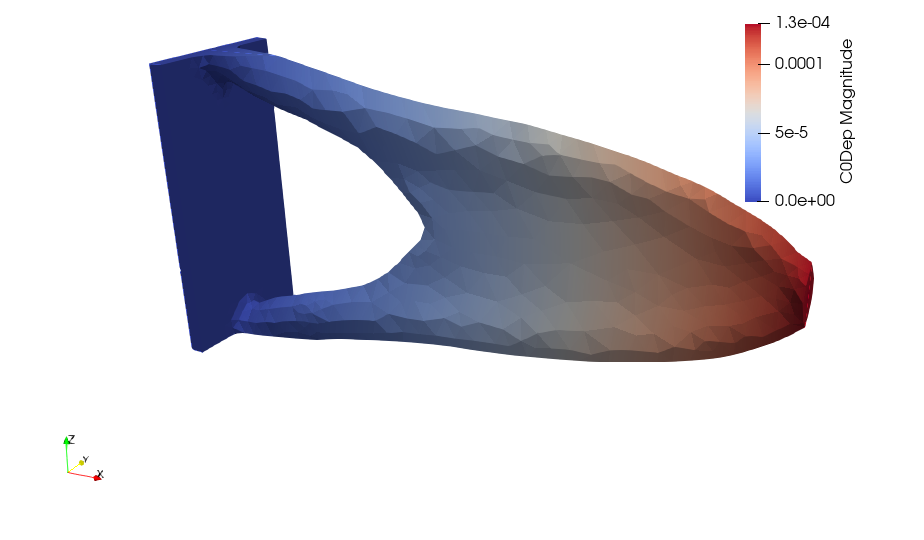

Fig. 11 Visualisation of the displacement field in Paraview

Topology optimization of a 2D cantilever beam using conformal level sets

The goal of this tutorial is to run a topology optimization of a bidimensional cantilever beam using unstructured conformal level sets.

Note

For running this tutorial Code_Aster 2 needs to be installed and available from the command line.

Test case

Consider the following specifications

  • domain of size \(2\) m \(x 1\) m

  • elastic material with Young modulus equal to \(210.e9\) Pa and Poisson ratio equal to \(0.3\)

  • beam clamped on the plane \(x = 0\) m and submitted to a vertical load g = \((0, -10000)\) N on the point \((2, 0.5)\)

  • minimization of the volume under a compliance constraint

Data setting : header

We start by editing a Cantilever2D.xml file.

The data file starts with the following header

<data dim="2" >

Data setting : implicit zones

Define implicit zones

<Zones>
    <Plane id="1" point="0.0001 0.25 0.5" normal="1. 0. 0." desc="x0 plane "/>
    <Plane id="2" point="0.05 0.25 0.5" normal="1. 0. 0." desc="dirichlet"/>
    <Sphere id="4" center="2. 0.5 0.0"  radius="0.0009" desc="nodal force"/>
    <Cylinder id="5" center1="1.9999 0.5 0." center2="2.1 0.5 0." radius="0.01" desc="force"/>
    <Holes id="6" n="6 4 2" r="0.2" boundingMin="0. 0. 0." boundingMax="2.0 1.0 1.0" type="Original" desc="Holes"/>
    <Union id="7" z="2 4 6" desc="initialization"/>
    <Union id="8" z="2 5" desc="onzone" />
</Zones>

Data setting : grids

Define the background mesh which is a uniform grid

<Grids>
    <Grid id="1" n="61 41" origin="0. 0." length="2.0 1.0" ofSimplex="True"/>
</Grids>

Data setting : levelsets

Define the level set together with a set of options. The option conform=”True” means that the level set is conformal. A set of meshing options are defined to drive the remeshing process.

<LevelSets>
    <LevelSet id="1" support="1" conform="True" gradientMethod="gradPhi">
          <MesherInfo hmax=".03" hmin="0.008" iso="0.0" rmc="True"
  nr="True" computeDistanceWith="meshdist"/>
    </LevelSet>
</LevelSets>

Data setting : physical problems

Define the physical problem, which is a linear elastic static problem.

We define material properties, one dirichlet condition and one neumann condition.

By default we use linear elements.

<PhysicalProblems>
    <GeneralAster type="static_elastic" id="1" >
        <Material  E="210.e9" Nu="0.3" />
        <Dirichlet eTag="eTag1" dofs="0 1" value="0.0"/>
        <Force nTag="nTag4" value="0. -1000" />
     </GeneralAster>
</PhysicalProblems>

Data setting : outputs

Define the desired output

<Outputs>
   <Output id="1" name="Cantilever2DHistory.xdmf" inTempDirectory="True" />
   <Output id="2" name="Cantilever2DHistory.csv" inTempDirectory="True" />
   <Output id="3" name="PROXY" outputs="1 2" />
</Outputs>

Data setting : optimization problems

Then, we define the optimization problem by entering the objective, the constraints, the initial levelset, the implicit zones, the output and a set of options.

Note that we have to define an upper bound value for the constraint.

Note that, since the constraint is a physical criterion, we precise which physical problem should be used with the keyword useProblem=”1”.

<OptimProblems>
    <OptimProblem type="TopoGeneric" id="1"
        OnZone="8" Dirichlet="2" Neumann="5"
        useLevelset="1"
        printMeshQualityInfo = "True"
        output="3"
        outputEveryLevelsetUpdate = "False">
      <Objective  type="Volume"  name="Volume"/>
      <Constraint type="Compliance"  name="Compliance" UpperBound="2*1.90489800e-04" useProblem="1" />
   </OptimProblem>
</OptimProblems>

Data setting : optimization algorithms

Then, we define the optimization algorithm which is linked to the optimization problem

<TopologicalOptimizations>
    <OptimAlgoNullSpace id="1"
       useOptimProblem="1"/>
</TopologicalOptimizations>

Actions setting

Here we declare actions which must be runned. At first the level set “1” is initialized with the implicit zone “7”

<Actions>
    <Action type="InitLevelset" ls="1" zone="7"/>

We create a nodal tag “nTag4” from implicit zone “4” for the nodal force and we set it as required to preserve it during the remeshing

<Action type="CreateTagsFromZones" ls="1" nodalTags="4" nodalprefix="nTag"/>
<Action type= "SetAsRequired" ls="1" nTags="nTag4" />

We perform a remeshing to generate a conformal mesh

  <Action type="Remesh" ls="1" hmax=".03" hmin="0.008" iso="0.0" rmc="True"
nr="False" computeDistanceWith="meshdist" />

We create an element tag to support the Dirichlet boundary condition

<Action type="CreateTagsFromZones" ls="1" elementTags="1" dim="1" elemenprefix="eTag"/>

Then, we run the topology optimization

<Action type="RunTopoOp" TopoOp="1"/>

Eventually mesh quality indicators are printed

       <Action type="LsQualityInfo" ls="1" />
   </Actions>
</data>
Optimal Shape

Fig. 12 Visualisation of the initial material distribution in Paraview

Run

To run the script using the command line application execute in a terminal

OpenPiscoCL Cantilever2D.xml

To run the script using the GUI application execute in a terminal

OpenPisco Cantilever2D.xml

Output

After running the tutorial script the following output files have been created in the working directory

  • Cantilever2D.xml.log : run summary

  • Cantilever2DHistory.xdmf : (heavy) file containing the mesh and fields at each iteration in xdmf format

  • Cantilever2DHistory.csv : convergence history in csv format

Optimal Shape

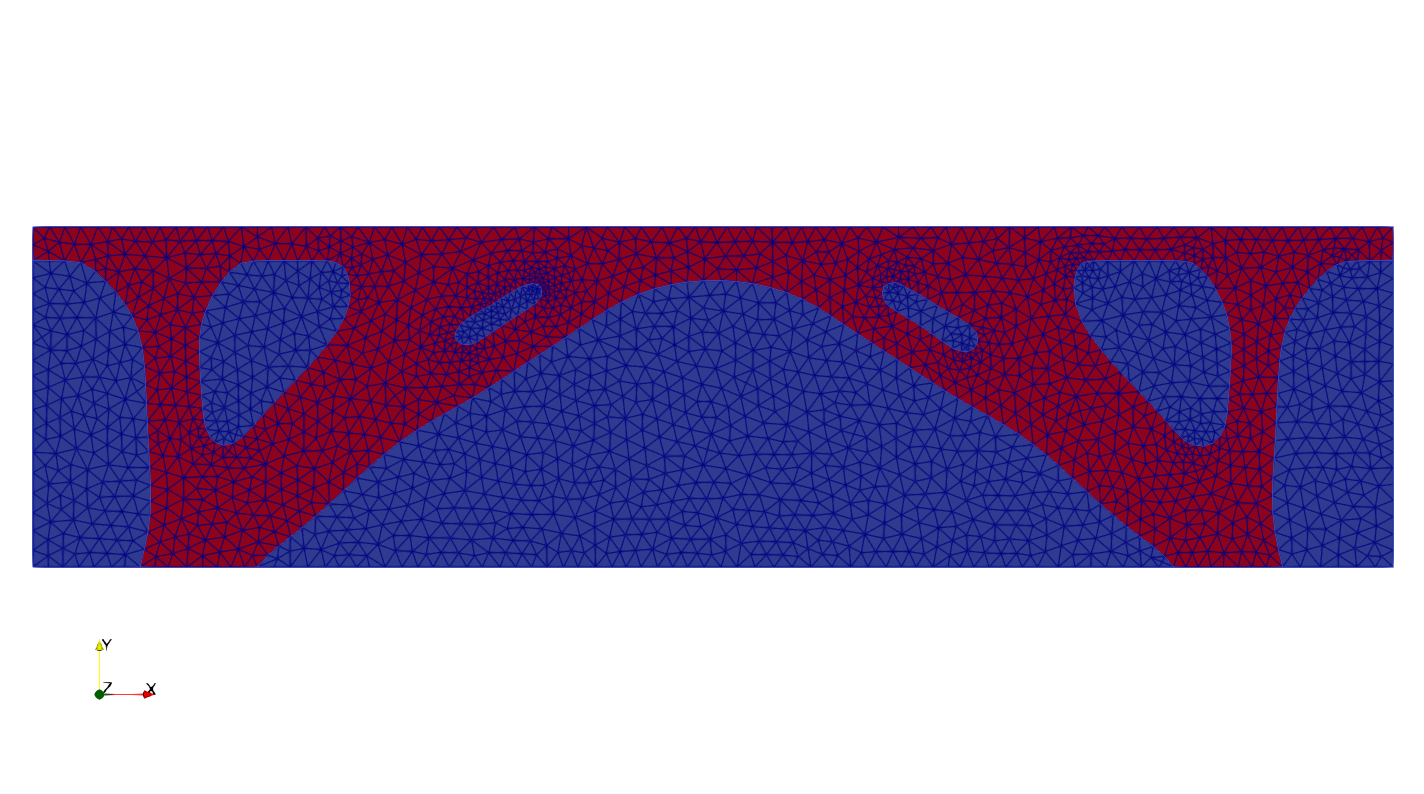

Fig. 13 Visualisation of the optimal design in Paraview

Optimal Shape Displacement

Fig. 14 Visualisation of the displacement field in Paraview

Conformal remeshing using implicit geometries and mmg3d

The goal of this tutorial is to create body-fitted meshes using implicit geometries and the remeshing software mmg3d. In order to do so, we start by editing a HoneyComb.xml file

<data dim="3">

We define the honeycomb implicit geometry

<Zones>
    <Honeycomb id="1" lx="0.3" w="0.05" desc="honeycomb implicit zone "/>
</Zones>

We define the initial grid and the conformal level set

<Grids>
    <Grid id="1" n="201 51 101" origin="0. 0. 0." length="2.0 0.5 1.0" ofTetras ="True"/>
</Grids>
<LevelSets>
    <LevelSet id="1" support="1" conform="True"></LevelSet>
</LevelSets>

We define the actions to run

<Actions>
    <Action type="InitLevelset" ls="1" zone="1"/>
    <Action type="AddEdges" ls="1" ar="45" />
    <Action type="Remesh" ls="1" hmax=".4" hmin="0.004" hausd="0.004" iso="0.0" rmc="True" nr="True"/>
    <Action type="WriteToFile" ls="1" filename="{INPUTFILE}.xdmf" />
</Actions>

We close the xml file

</data>

Run

To run the script using the command line application execute in a terminal

OpenPiscoCL HoneyComb.xml

To run the script using the GUI application execute in a terminal

OpenPisco HoneyComb.xml

Output

After running the following output files have been created in the working directory

  • HoneyComb.xml.log : run summary

  • HoneyComb.xdmf : file containing the body-fitted mesh created

HoneyComb level sets

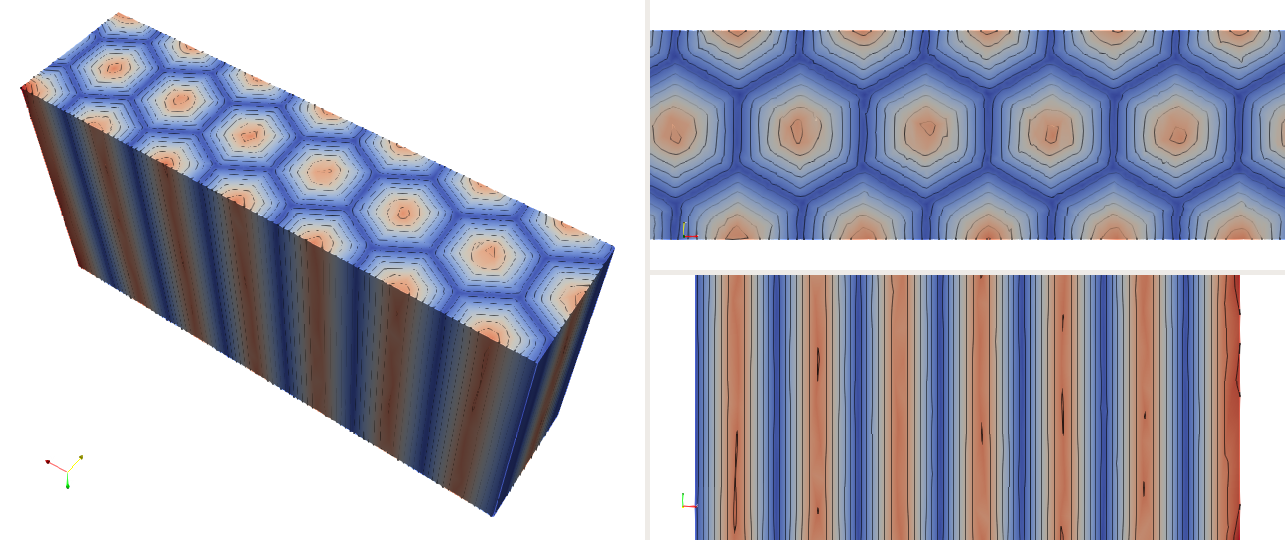

Fig. 15 Honeycomb implicit geometry

HoneyComb level sets

Fig. 16 Honeycomb-shaped body-fitted mesh

Overhanged surfaces detection for additive manufacturing

The goal of this tutorial is to detect and export overhanged surfaces for additive manufacturing. At first we start by editing an OverHangDetection.xml file, reading the input mesh model and instanciating a level set

<data dim="3" debug="False" >

    <Grids>
        <Mesh id="1" filename="{PISCO_TEST_DATA}TubeMesh.msh" />
    </Grids>

    <LevelSets>
        <LevelSet id="1" support="1" conform="True">
        </LevelSet>
    </LevelSets>

We detect the overhanged surfaces for an input angle of 45 degrees in the direction \((0, 0, 1)\). The keyword surfaceTags is optional and allows to run the overhang detection on specific mesh tags. Read the docstring of OpenPisco.Actions.AdditiveManufacturingActions.OverHangDetectionAction for the complete list of options. The routine computes the triangle normals to check if the overhang condition is fulfilled. Doing so a tag named”overhangSurface” is filled with the overhanged triangles and added to the mesh tags.

<Actions>
    <Action type="OverHangDetection" ls="1" angleDetection="45" surfaceTags="OutsideTube InsideTube" direction="0 0 1"/>

Eventually we export the overhanged surfaces and close the input file

       <Action type="WriteSurfaceToStl" eTag="overhangSurface" ls="1"/>
   </Actions>
</data>
input Overhang Detection

Fig. 17 Input model with selected mesh tags “OutsideTube” and “InsideTube”

output Overhang Detection

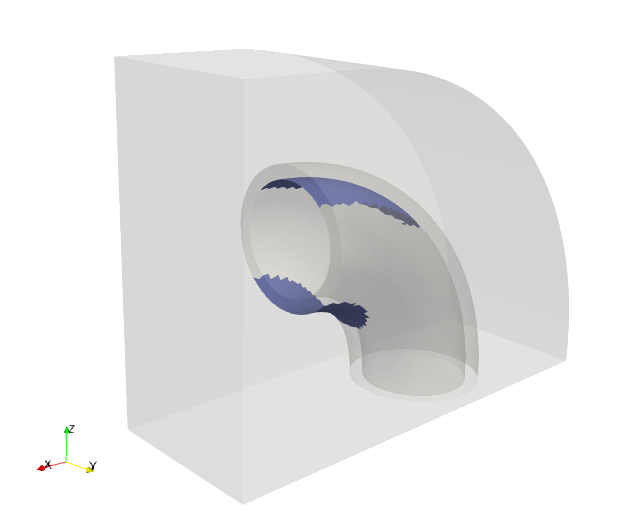

Fig. 18 Detected overhanged surfaces

1

https://gitlab.com/openpisco/openpisco/-/tree/master/src/OpenPisco/Demos/

2

https://www.code-aster.org/
